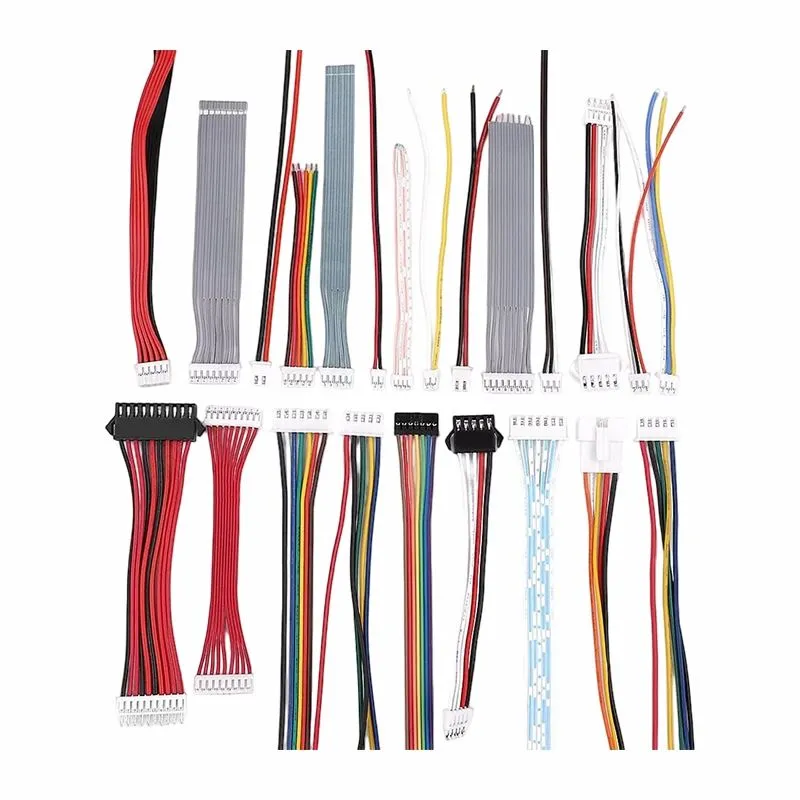

Automotive Wiring Harness Kit

Modern vehicle electrical systems are becoming more complex. Engine control, ignition systems, lighting upgrades, sensor connections, cooling fans, fuel pumps, dashboard electronics, battery connections, auxiliary power systems, and aftermarket accessories all require stable wiring. If the wiring structure is unclear or the components are not properly matched, customers may face no-start problems, signal loss, blown fuses, intermittent power, overheating wires, or difficult maintenance.

Our Engine Wiring Harness Kit support is designed for customers who need custom wiring solutions for engine-related circuits, vehicle restoration, aftermarket installation, replacement wiring, and custom vehicle projects. The kit can include main harnesses, branch harnesses, connectors, terminals, fuse holders, relays, relay sockets, protective sleeves, heat shrink tubing, labels, clips, cable ties, and other installation accessories according to project requirements.

Customers usually care about several practical questions before ordering: Does the kit include the required parts? Is the wire gauge suitable for the load? Are the connectors and terminals reliable? Are the wires clearly labeled? Are fuses and relays included where needed? Can the kit be tested before shipment? Can the same design be repeated in future batches?

These concerns are important because wiring problems can cause serious installation and performance issues. A wrong pinout may cause the circuit to fail. A loose terminal may cause intermittent power. An undersized wire may heat under load. An unclear label may increase installation time. A missing relay or fuse may reduce circuit safety.

One of the biggest pain points in vehicle wiring projects is fitment. A wiring kit may look complete, but if the wire length, branch direction, connector type, fuse location, or pinout does not match the vehicle system, installation becomes difficult. Customers may need to cut, extend, or modify wires, which increases labor time and creates more wiring risk.

Circuit layout is also important. Vehicle wiring may involve power supply, ground, ignition, sensors, relays, headlights, fans, fuel pumps, dashboard signals, horn circuits, battery connections, and accessory circuits. If these circuits are not clearly identified, installers may connect wires incorrectly. Wrong wiring can cause no power, reversed polarity, blown fuses, unstable signals, or equipment damage.

A good wiring kit should make installation easier. Color-coded wires, printed labels, suitable wire length, organized branches, connector matching, and protective sleeves help installers identify circuits faster and reduce mistakes. This is useful for professional installers, repair shops, restoration builders, aftermarket accessory suppliers, and customers working on custom vehicle projects.

A reliable wiring kit should reduce installation uncertainty before the customer starts working on the vehicle. The goal is not only to provide wires, but to provide a practical and organized electrical connection solution.

Connectors and terminals directly affect electrical stability. A loose terminal or poor crimp may cause high resistance, intermittent contact, overheating, or open circuits. In vehicle applications, vibration and movement can make weak connections fail over time. Therefore, terminal crimping quality, connector locking, pinout accuracy, and connector fit should be carefully controlled.

Fuse and relay selection is also important. Fuses help protect circuits from overload or short-circuit risks, while relays help control higher-load devices such as fans, lights, horns, fuel pumps, and auxiliary accessories. If the fuse rating is unsuitable or relay wiring is incorrect, the circuit may become unsafe or unreliable.

A well-designed wiring kit should consider both electrical performance and installation safety. Power circuits need proper wire gauge and circuit protection. Signal circuits need correct pinout and stable contact. External or high-vibration areas need suitable protection and secure routing.

For vehicle restoration and aftermarket projects, appearance and organization are also important. Clear labels, clean routing, proper branch layout, and consistent wire colors can make the installation look more professional and make later maintenance easier.

Testing is one of the most important ways to reduce customer installation risk. A kit may look correct but still have hidden problems such as wrong pinout, open circuit, short circuit, weak terminal crimping, incorrect label, or missing component. Testing before shipment helps customers save installation time and reduces troubleshooting pressure.

Our Automotive Wiring Harness Assembly Kit support is suitable for sample development, small-batch production, and long-term batch supply. During the sample stage, customers can confirm wiring layout, wire length, fuse and relay configuration, connector type, pinout, labels, and installation route. After approval, these details can be recorded clearly for future production.

Many wiring kit projects begin with a sample. The sample stage is used to confirm the wire route, connector type, wire length, branch layout, fuse location, relay configuration, label method, and protection materials. If the installation test shows that a wire is too short, a branch is in the wrong location, or a connector direction needs adjustment, changes can be made before batch production.

After sample approval, production consistency becomes important. Wire specifications, connector models, terminal types, fuse ratings, relay models, sleeve materials, label positions, crimping standards, testing methods, and packaging requirements should be documented clearly. This helps future batches match the approved sample and reduces repeated communication.

For distributors, repair shops, restoration brands, and vehicle accessory suppliers, stable batch production helps reduce returns, installation complaints, and inventory problems.

Quality control should cover the entire wiring kit production process, including material checking, wire cutting, stripping, terminal crimping, connector assembly, fuse and relay installation, sleeve assembly, labeling, electrical testing, visual inspection, and packaging.

Final packaging should protect wires, terminals, connectors, fuse holders, relays, and labels during transportation. For complex kits with multiple branches or accessories, proper bundling and labeling can make installation easier and reduce confusion when the customer opens the package.

The final goal is to deliver wiring kits that are complete, clearly identified, electrically correct, easy to install, and reliable for real vehicle applications.
