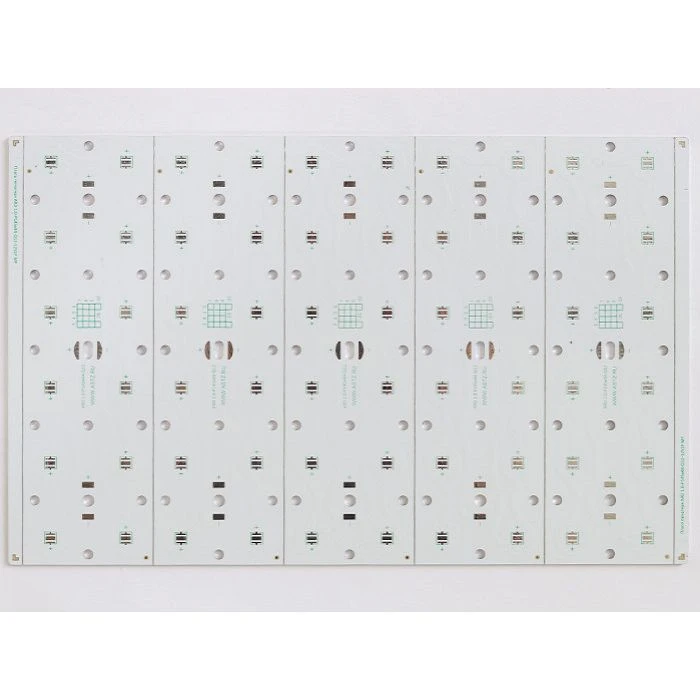

High Power Aluminum PCB

High-Power Aluminum PCB is a metal-core PCB optimized for high-power applications. It adopts high-thermal-conductivity dielectric and aluminum base to rapidly dissipate heat from power components, lowering junction temperature and preventing overheating. Widely used in high-power LED, power supplies and automotive power modules. Material grade, dielectric thermal resistance and copper weight directly affect reliability. Engineers should balance thermal performance, isolation voltage and project budget during DFM review.

Many electronic systems operate continuously under heavy electrical loads.

Applications such as industrial power supplies, battery charging systems and motor controllers generate substantial heat during operation. If thermal energy cannot be removed efficiently, excessive temperatures may lead to:

• Reduced power efficiency
• Component degradation
• Shortened service life
• Thermal runaway risks
• Increased maintenance requirements
• Unexpected system downtime

High Power Aluminum PCBs are designed to address these challenges by providing a direct thermal path from heat-generating components to the aluminum substrate.

This approach improves thermal stability and helps maintain consistent system performance.

The rapid growth of electric vehicles has significantly increased demand for high-power PCB solutions.

Several vehicle systems rely on effective heat management:

Renewable energy installations often operate continuously in outdoor environments.

High Power Aluminum PCBs are commonly used in:

Industrial facilities increasingly rely on electronic control systems to improve productivity and efficiency.

Many automation products operate under demanding conditions, including elevated temperatures and continuous duty cycles.

Typical applications include:

LED lighting remains one of the most common applications for aluminum-based circuit boards.

Although LEDs are highly efficient, a portion of electrical energy is still converted into heat.

Thermal management directly affects:

• Luminous efficiency
• Color stability
• Product lifespan
• System reliability
• Maintenance intervals

High Power Aluminum PCBs help transfer heat away from LED junctions, supporting consistent lighting performance throughout the product lifecycle.

Applications include:

• Street lighting
• Stadium lighting
• Industrial lighting
• Architectural lighting
• Outdoor floodlighting

Products operating at high power levels are often expected to deliver years of reliable service.

Several performance factors influence long-term reliability:

Several market developments continue increasing demand for High Power Aluminum PCB technology.

When sourcing High Power Aluminum PCBs, purchasing teams often evaluate suppliers based on several important criteria.

√ Experience in Power Electronics

Manufacturers with power application experience often provide valuable engineering recommendations.

√ Material Selection Capability

Different applications require different thermal performance levels.

√ Production Consistency

Stable manufacturing processes support predictable product quality.

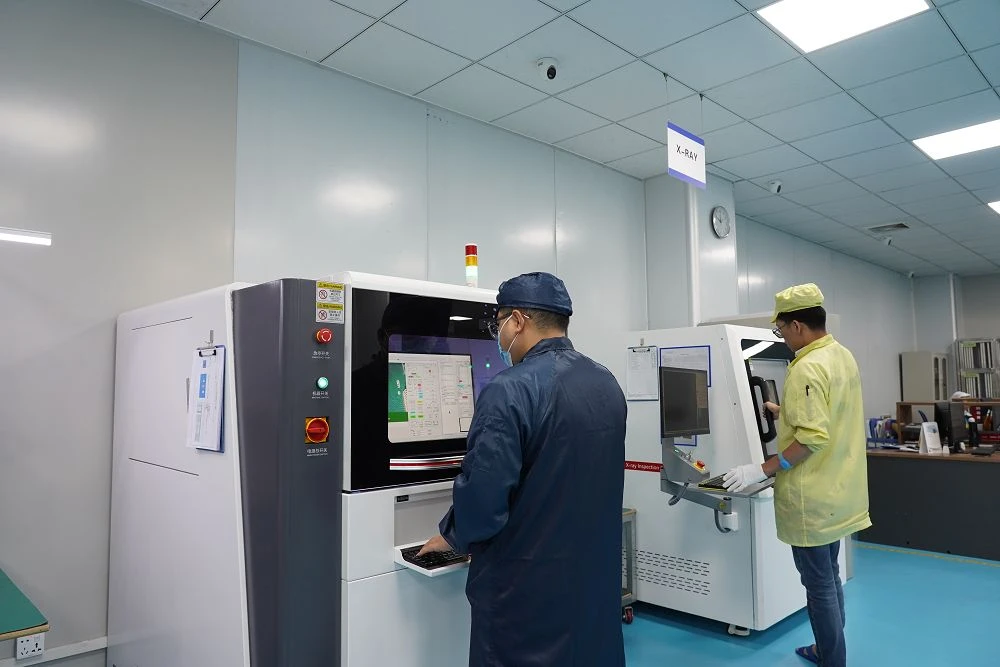

√ Testing Resources

Verification capabilities help confirm performance requirements before shipment.

√ Long-Term Production Support

Reliable supply partners support future growth and product expansion.

Selecting a supplier with experience in high-power applications can help reduce development risks and improve overall project outcomes.

As electronic systems continue moving toward higher power density and smaller form factors, thermal management will remain a major design challenge.

High Power Aluminum PCB technology offers a practical balance between performance, reliability and cost, making it suitable for a wide range of industrial and commercial applications.

From electric vehicles and renewable energy systems to industrial automation and advanced lighting products, aluminum-based PCB solutions will continue to play an important role in supporting next-generation power electronics.
