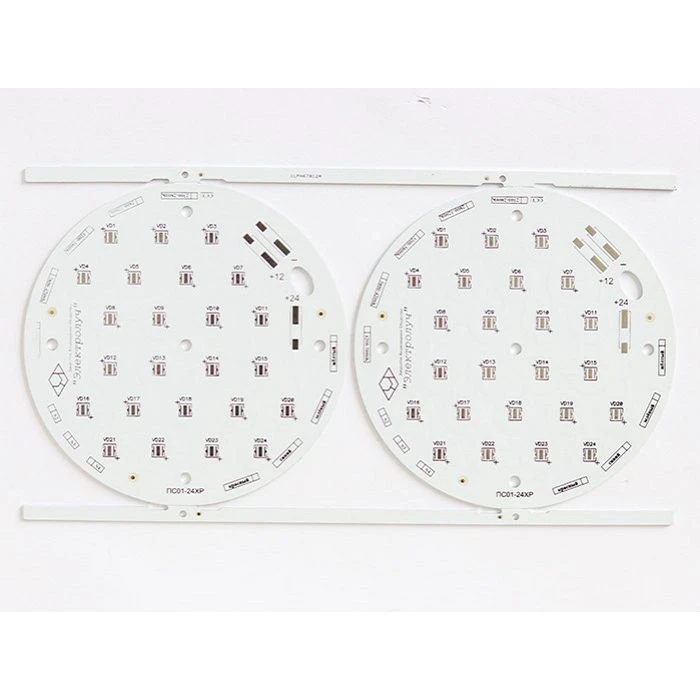

Product Details

A Double Layer Aluminum PCB is a metal core printed circuit board with copper circuitry on both sides of the dielectric layer and an aluminum substrate for thermal management. Compared with a single-layer aluminum PCB, the two conductive layers provide greater routing flexibility for circuits with more components or electrical connections.This makes Double Layer Aluminum PCB suitable for LED lighting, power supplies, automotive electronics, industrial equipment, and other applications where both circuit density and heat dissipation are important.

Core Advantages of Double Layer Aluminum PCB

Two-Sided Circuit Routing

Two copper layers provide additional routing space for power, ground, and signal connections, making the board suitable for more complex circuit designs.

Effective Thermal Management

The aluminum substrate helps transfer heat away from LEDs and power components, supporting thermal management in high-power applications.

Better Space Utilization

A double-layer structure can accommodate more components and connections without requiring a significant increase in PCB dimensions.

Strong Mechanical Stability

The aluminum substrate provides mechanical rigidity and dimensional stability for applications requiring a durable PCB structure.

Custom Double Layer Aluminum PCB Manufacturing

Our Custom Double Layer Aluminum PCB solutions can be manufactured according to Gerber files, PCB drawings, mechanical drawings, stack-up specifications, and electrical requirements.

Customization options include:

Two-layer copper circuitry
Custom board dimensions
Aluminum substrate thickness
Copper thickness
Dielectric thickness
Thermal conductivity options
White or customized solder mask
HASL and ENIG surface finishes
Custom hole sizes
Custom board shapes
LED pad layouts
Electrical testing

The PCB structure can be optimized according to power requirements, component density, thermal conditions, and mechanical installation requirements.

Double Layer Aluminum PCB for High-Power Applications

High-power electronic components can generate significant heat during operation. A Double Layer Aluminum PCB for High Power Applications combines additional routing capacity with an aluminum thermal substrate.

The two copper layers can be used to distribute power and signals more efficiently, while the aluminum base helps transfer heat through the PCB structure.

Thermal performance depends on factors such as:

Aluminum thickness
Dielectric thermal conductivity
Copper thickness
Component power
PCB layout
Heat sink design
Operating temperature

For higher-power applications, PCB thermal design should be considered together with the complete product cooling system.

Double Layer Aluminum PCB for LED Lighting

Double Layer Aluminum PCB for LED Lighting is suitable for lighting products that require more complex routing than a conventional single-layer LED board.

Typical applications include:

LED drivers
LED panels
High-power LED modules
Automotive lighting
Industrial lighting
Outdoor lighting
Architectural lighting

The two-layer structure can provide additional routing flexibility for LED arrays, driver circuits, and power connections while the aluminum substrate supports heat dissipation.

Circuit and Thermal Design

A Double Layer Aluminum PCB requires both electrical and thermal considerations during layout.

Important design parameters include:

Trace width
Line spacing
Copper thickness
Pad dimensions
Via configuration
Component placement
Thermal requirements
Board thickness

For high-current circuits, wider copper traces and suitable power distribution can be considered according to the required current capacity.

Thermal vias or other thermal structures may also be incorporated where the specific PCB construction allows.

Surface Finish and Solder Mask

Surface finish can be selected according to the component and assembly requirements.

Common options include HASL and ENIG.

For LED applications, white solder mask is frequently selected around LED areas because it can provide a reflective surface that supports the lighting design.

Solder mask color, surface finish, and other PCB appearance requirements can be customized according to the application.

Applications of Double Layer Aluminum PCB

LED Lighting

LED drivers, high-power LED modules, panels, automotive lighting, and industrial lighting can use Double Layer Aluminum PCB for combined routing and thermal management.

Power Electronics

Power supplies, converters, motor control circuits, and other heat-generating electronics can benefit from the aluminum substrate and additional routing layer.

Automotive Electronics

Automotive lighting, power modules, control systems, and other electronic assemblies can use double-layer aluminum PCBs where thermal performance and mechanical stability are required.

Industrial Equipment

Industrial control modules, power equipment, indicators, and electronic instruments can use aluminum PCBs for applications requiring effective heat dissipation.

Consumer Electronics

Compact lighting products and power-related consumer electronics can use double-layer aluminum circuit boards when additional routing capacity is needed.

01/

Double Layer Aluminum PCB Prototype and Mass Production

A Double Layer Aluminum PCB prototype allows engineers to verify the circuit structure, board dimensions, component placement, and thermal performance before mass production.

Prototype evaluation can include:

Copper pattern
Layer connectivity
Board dimensions
Hole positions
Component placement
Thermal performance
Electrical continuity
Assembly compatibility

After prototype approval, the validated material specifications, copper thickness, aluminum thickness, and manufacturing requirements can be transferred to volume production.

02/

Double Layer Aluminum PCB Assembly

Double Layer Aluminum PCB assembly can be provided together with PCB fabrication for customers requiring an integrated manufacturing solution.

Assembly services may include:

SMT assembly
LED component assembly
Power component assembly
Component sourcing
AOI inspection
Electrical testing
Functional testing

Suitable fixtures and thermal considerations can be applied during assembly to maintain production consistency.

Quality Control and Certifications

Quality control for Double Layer Aluminum PCB manufacturing can include aluminum substrate verification, copper thickness, dielectric thickness, trace width and spacing, hole dimensions, solder mask quality, surface finish, board dimensions, and electrical testing.

Depending on the application and target market, applicable requirements such as UL, RoHS, and REACH can be supported.

Additional thermal, electrical, mechanical, or reliability testing can be arranged according to customer requirements.

FAQ

1. What is a Double Layer Aluminum PCB?

A Double Layer Aluminum PCB is an aluminum-based metal core PCB with copper circuitry on two conductive layers, providing additional routing capacity compared with a single-layer aluminum PCB.

2. What is the advantage of Double Layer Aluminum PCB over Single Layer Aluminum PCB?

The two-layer structure provides more routing space for power, ground, and signal connections, making it suitable for more complex circuit designs while retaining the thermal advantages of an aluminum substrate.

3. Is Double Layer Aluminum PCB suitable for high-power LED applications?

Yes. It can be used for high-power LED applications where additional circuit routing and thermal management are required. The appropriate substrate, dielectric, copper thickness, and cooling structure should be selected according to the power level.

4. Can both copper layers be used for electrical routing?

Yes. The two conductive layers can be used for signal, power, and ground connections according to the PCB design. The actual interconnection structure depends on the board layout and manufacturing requirements.

5. Can the aluminum thickness and thermal conductivity be customized?

Yes. Aluminum thickness, dielectric properties, and other thermal parameters can be selected according to the mechanical and thermal requirements of the application.
